Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: KT`
  • Model Number: SJ-3L 50B/55B/65B
  • Voltage: 380v 50hz
  • Power(W): 18.5kw+22kw
  • Dimension(L*W*H): 9.5*4.5*7.5m
  • Weight: 5T
  • Certification: CE,ISO
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Screw diameter:: 50mm
  • screw material:: 38CrMoALA
  • Screw L/D ratio:: 30:1
  • max film width:: 1500mm
  • Die head:: rotary die or not
  • main motor:: 18.5KW+22KW
  • winder:: double winders
  • max estrusion output:: 220kgs/hr
  • machine height:: 7.5m
  • three layer film blowing machine:: HDPE/LDPE/LLDPE /EVA

Packaging & Delivery

Packaging Details ABC Three Layer Co-extrusion Film Blowing Machine package is nude packing & film packing or Wooden case/wooden base. Metal surface of film blowing machine will be coated by anit-rust oil
Delivery Time ABC Three Layer Co-extrusion Film Blowing Machine :45days







Product Description

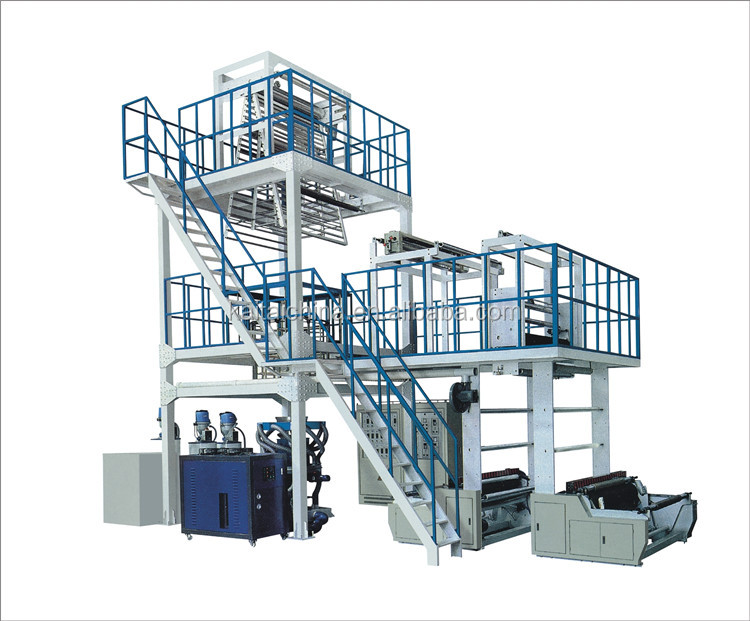

  PE film making machine / film blowing machine / A+B+C Three-layer co-extrusion film blowing machine







Die head is layer type spiral mandrel,continuous 360 rotation;Or with horizontal±180°haul-off unit.The means of the reversing haul-off unit, films can be produced without fixing rotary die head, and the structure of die head is simplified.



OPTIONAL EQUIPMENT

1) AUTO LOADER 2) CORONA 3)AIR COMPRESSOR 4)AIR COLLING DEVICE



Model

SJ-3L 50B

SJ-3L 55B

SJ-3L 65B

Suitable materials

                 LDPE LLDPE HDPE EVA

Film Width(mm)

800-1500

1200-2000

1600-2500

Film Thickness(mm)

0.028-0.20

0.028-0.20

0.03-0.20

Max.Extrusion Output(kg/hr)

220kg/hr

290kg/hr

380kg/hr

EXTRUDER

Screw Diameter(mm)

AΦ50 BΦ55 CΦ50

AΦ55 BΦ65 CΦ55

AΦ65 BΦ70 CΦ65

Screw L/D Ratio

28:1

28:1

28:1

Screw Material

SACM-645/38 CRMOALA

Cylinder Material

SACM-645/38 CRMOALA

Cylinder Cooling

370w x 2/3

370w x 2/3

550w x 3/3

Driving Motor(kw)

A18.5+B22+C18.5kw

A22+B37+C22kw

A37+B45+C37kw

Temperature Control

3*3

3*3

4*3

Average Power-consume(kw)

80

95

120

TYPE OF DIE

Die Size(mm)

Φ250/300

Φ400

Φ500

Temperature Control

4

4

4

Air Ring

1

1

1

Air Blower(kw)

7.5

11

15

TAKE-UP UNIT

Roller width

Φ165*1600

Φ190*2100

Φ190*2600

Take-up Speed(m/min)

5-60

5-45

5-45

Take-up Motor(kw)

1.5

2.2

2.2

WINDING UNIT

Type

           SURFACE FRICTION TYPE

Winding Motor(kw)

1.5

2.2

2.2

Winding Speed(m/min)

5-60

5-45

5-45

Overall Diemension(L*W*H)

9.5*4.5*7.5m

10.5*5.0*9m

11.5*5.5*10m







Production Pictures Showing

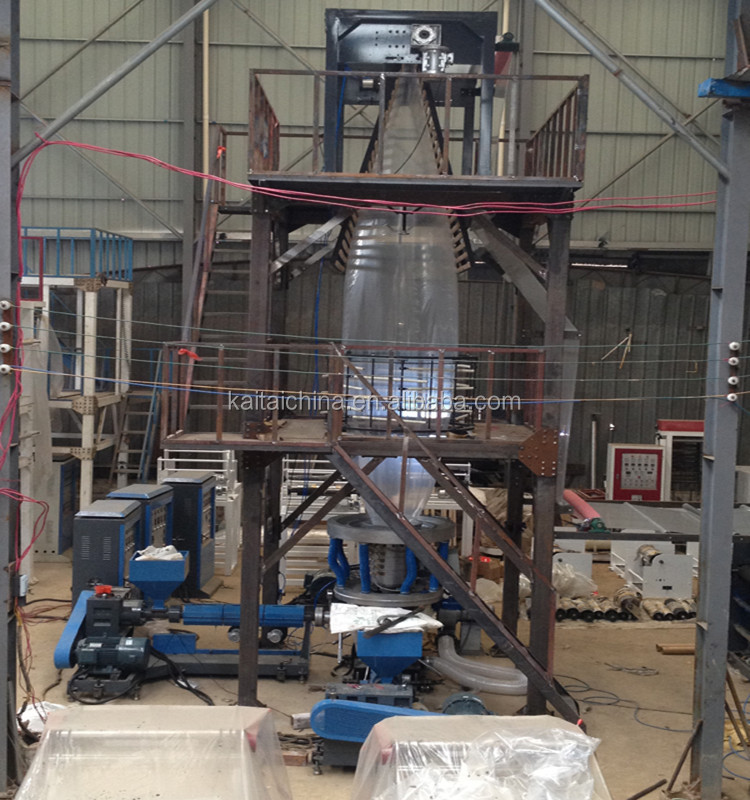

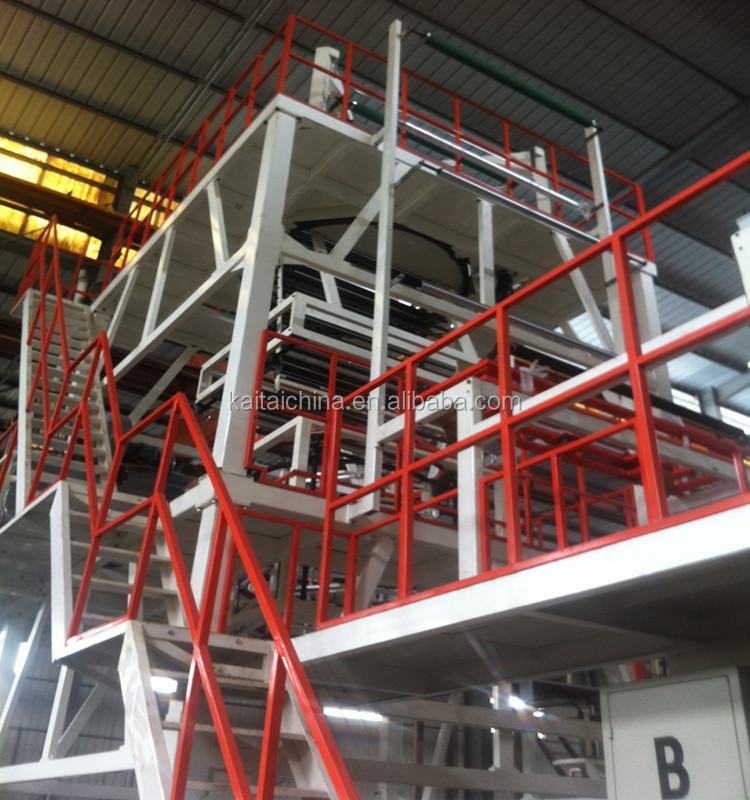

Three layer co-extrusion film blowing machine with rotary up traction

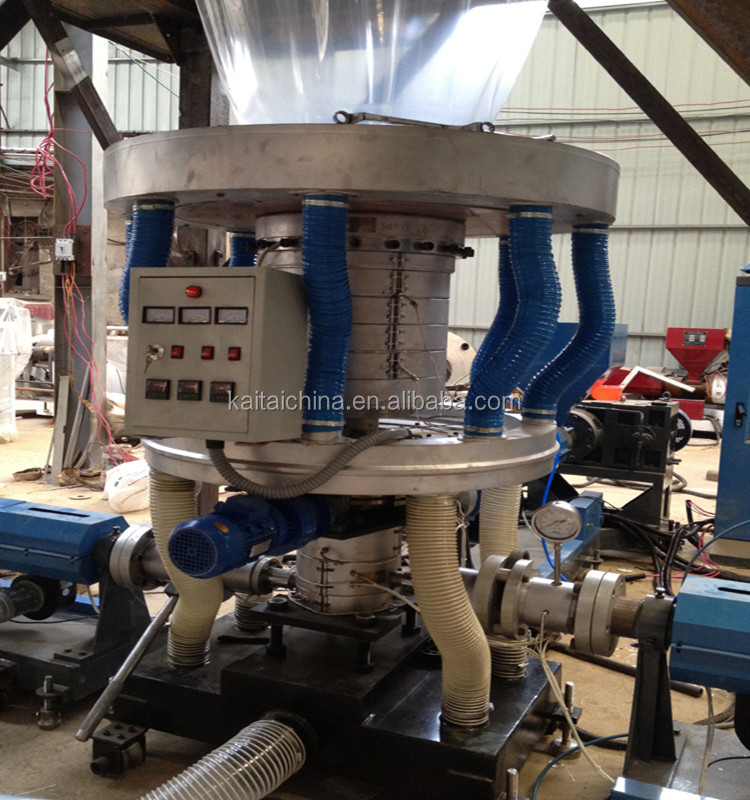

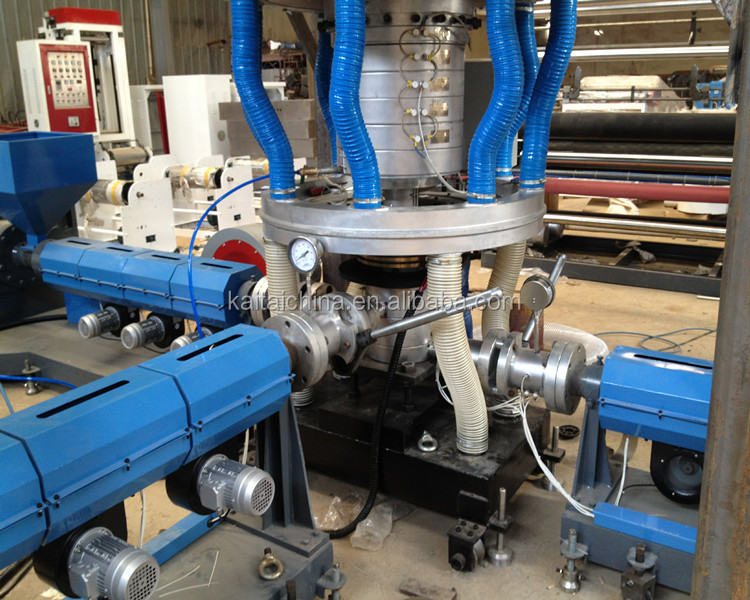

Three layer co-extrusion film blowing machine with rotary die

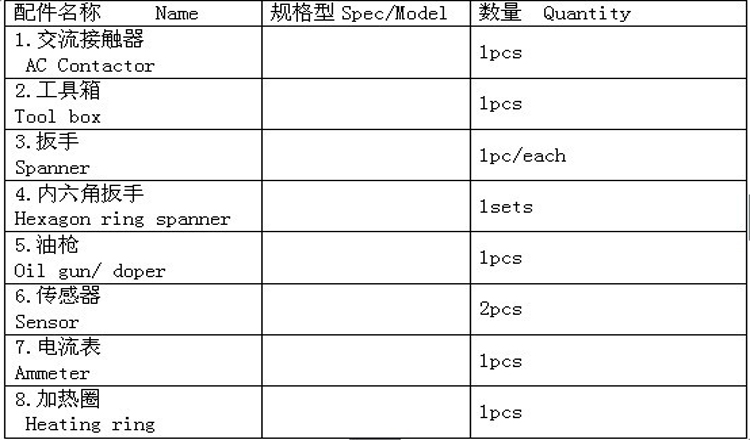

Free charges spare parts of film blowing machine









Company Information

  Ruian Kaitai Plastic Machinery Factory was found in 1995,located in Zhejiang Ruian City--the base of plastic packaging machines of China.It has been awarded the honor of high-new technology enterprise,administration example enterprise,high foreignexchange-creating enterprise in the plastic machinery trade of Zhejiang province.

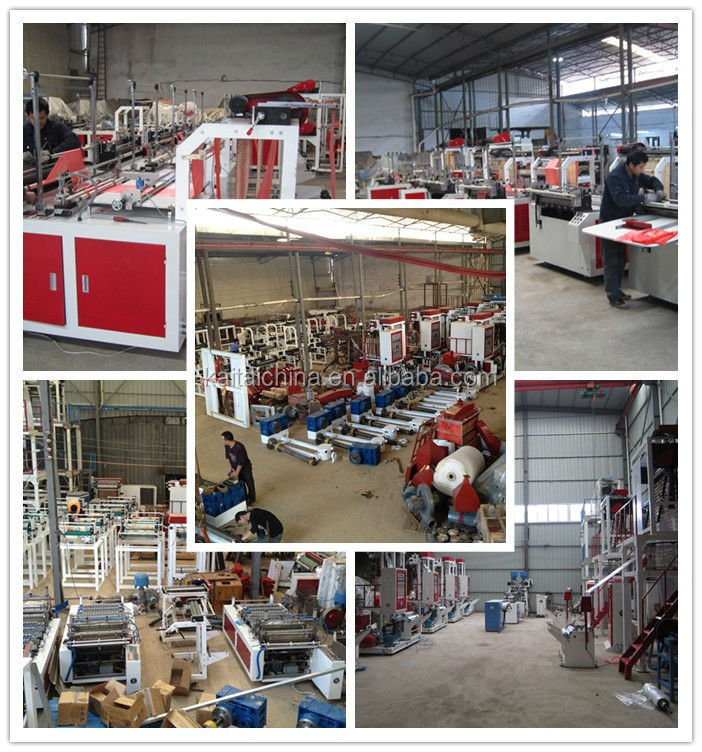

Production Department







Packaging & Shipping







Our Services

  1. Guarantee of machines: 1 year for quick-wear parts.The service is for whole life

  2. Installation: Training the buyers in seller's factory by free charge; Or installating the machines in buyer's factory, the buyers will charge for the cost( including air tickets,hotel and restaurant and salary and so on)

   If any questions/requires, welcome to visit to our factory / contact us

   Add: No.295,Yanjiang West Road,Ruian City,Zhejiang Province,China,   325200

    Tel:0086-577-65671998     Fax:0086-577-65672998

  Attn: Ms. Shirlin     Mobile No.:0086-13732052371   WeChat: shirlylee09   Skype: lishirlin







Chinaplas









FAQ



 1. Q: Are you a factory or trading company?

   A: We are a factory



 2. Q: Where is your factory located?

   A:Our factory located in Ruian city,Zhejiang Province,China.

      About 40 minutes by plane from Shanghai (5 hours by motor train);

      About 2 hours by plane from Guangzhou



 3. Q:Have you been to Chinaplas?

   A:Yes, we will join in Chinaplas Fair every year
